Description

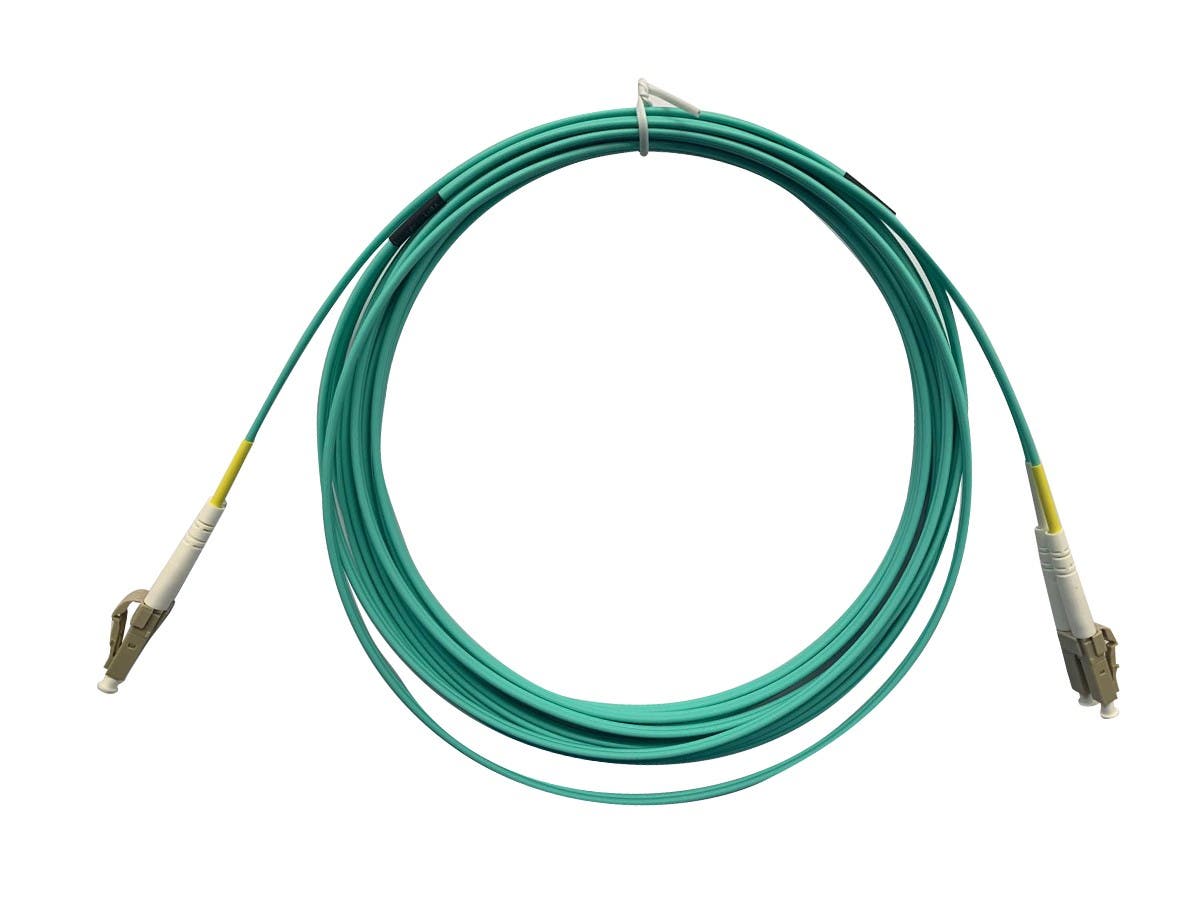

This UL® listed 50/125µm OM4 fiber optic cable features an extremely high bandwidth, making it suitable for high‑throughput enterprise networks, telecomm rooms, server farms, and cloud storage network applications. It is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers, etc. for 10G/40G/100G Ethernet connections. It supports 10GB to 400 meters and 40G/100GB to 100 meters and is fully (backwards) compatible with 50/125. These OM4 cables provide longer connection lengths than OM3 cables.
Features:
- Meets EIA/TIA 604‑2 with ceramic ferrule for high speed cabling networks
- Low insertion loss and high return loss, stricter than industry standards
- High strength aramid yarn strength member ensures high tensile strength and long term stability in transmissions
- Small outer diameter, lightweight, flame‑retardant, easy to strip, low attenuation, physically soft
- Cable printing helps clarify and recognize different cables
- Zirconia Ceramic Ferrule Optimum IL and RL
- Bend insensitive fiber cable shows great performance and resilience
- Compliant with IEC61754, GR‑326, and TIA/EIA 568 standards
- UL® certified
| Fiber Type | Multi‑mode OM4 (50/125µm) |
| Fiber Count | Duplex |
| Fiber Manufacturer | Corning® |
| Jacket Material | PVC |
| Fire Safety Rating | OFNR |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤ 0.30dB |
| Return Loss | ≥ 20dB |
| Repeatability | 1000 times typical change value ≤ 0.20dB |
| Interchangeability | ≤ 0.20dB |
Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
UL® and the UL logo are registered trademarks of UL LLC.
Corning® is a registered trademark of Corning Incorporated.
