Description
Because of its immunity to electronic interference and its greater speeds over longer distances, fiber optic cabling has become the conduit of choice for high speed network communications. Monoprice™ is proud to offer a full line of high‑quality Single‑mode and Multi‑mode duplex cables using optical fibers made by Corning®.

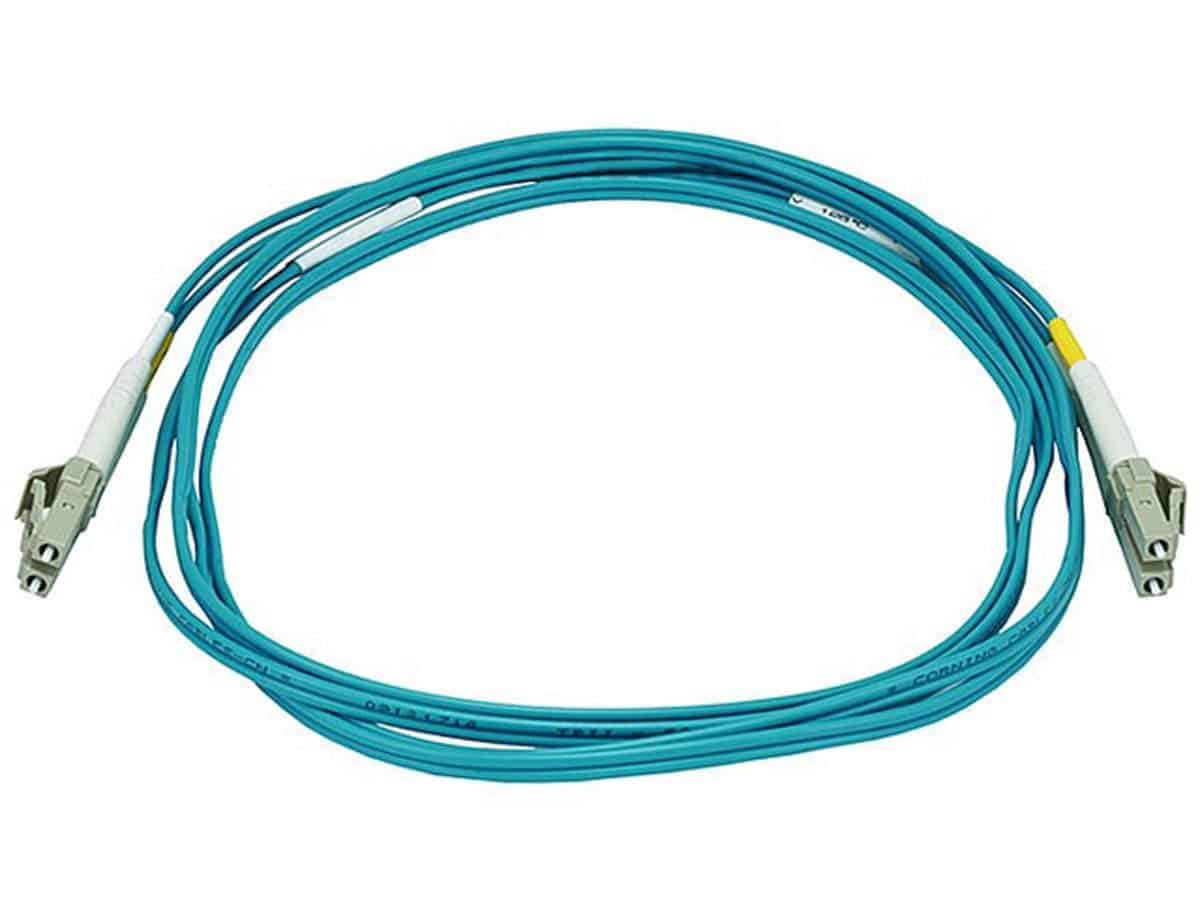

This is an OM3 “Aqua” laser‑optimized, multi‑mode cable with a 50µm core and 125µm cladding diameter. The cable has color‑coded Dual LC connectors on each end and is ideal for use in 10 Gigabit Ethernet (GbE) networks.
The cable jacket is OFNR (Optical Fiber, Nonconductive, Riser) rated by UL®, which means that it complies with fire safety and insurance requirements and is safe for use within the walls, and between the floors, of commercial class buildings.
| Fiber Type | Multi‑mode OM3 (50/125µm) |
| Fiber Count | Duplex |
| Fiber Manufacturer | Corning® |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Fire Safety Rating | OFNR |

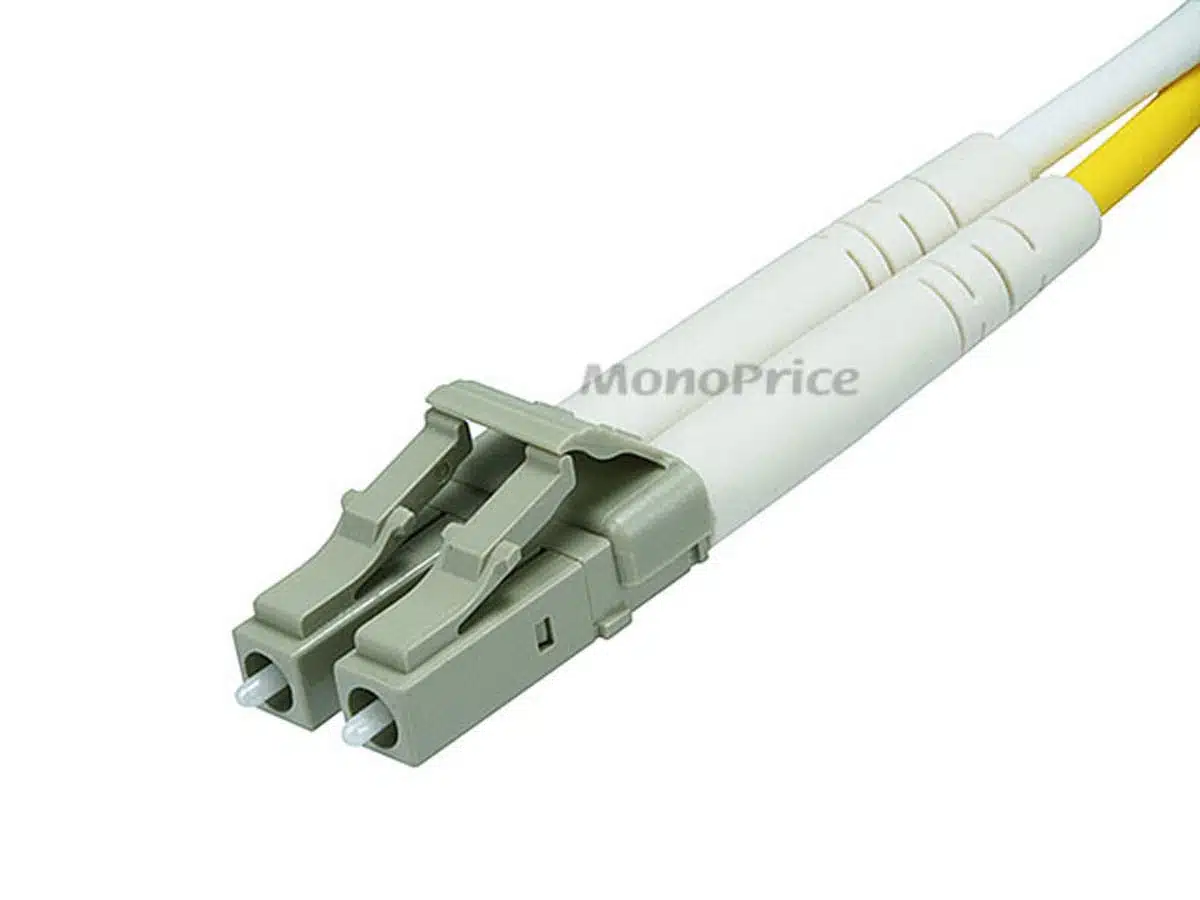

| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤ 0.30dB |
| Return Loss | ≥ 20dB |
| Repeatability | 1000 times typical change value ≤ 0.20dB |
| Interchangeability | ≤ 0.20dB |
Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
UL® and the UL logo are registered trademarks of UL LLC.
Corning® is a registered trademark of Corning Incorporated.
Be the first to review “Monoprice OM3 Fiber Optic Cable – LC/LC, UL, 50/125 Type, Multi-Mode, 10GB, Aqua, 2m, Corning”
