Description
Because of its immunity to electronic interference and its greater speeds over longer distances, fiber optic cabling has become the conduit of choice for high speed network communications. Monoprice™ is proud to offer a full line of high‑quality Single‑mode and Multi‑mode duplex cables using optical fibers made by Corning®.

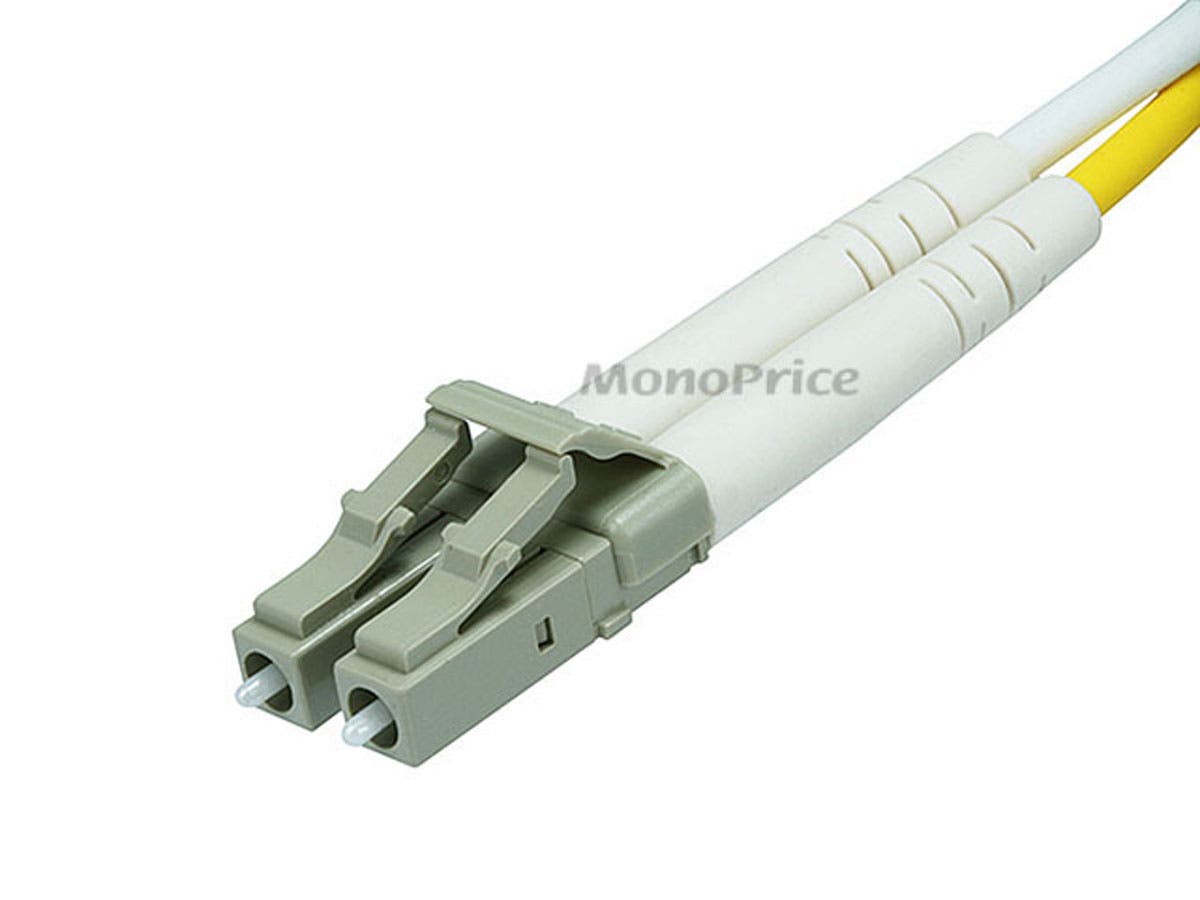

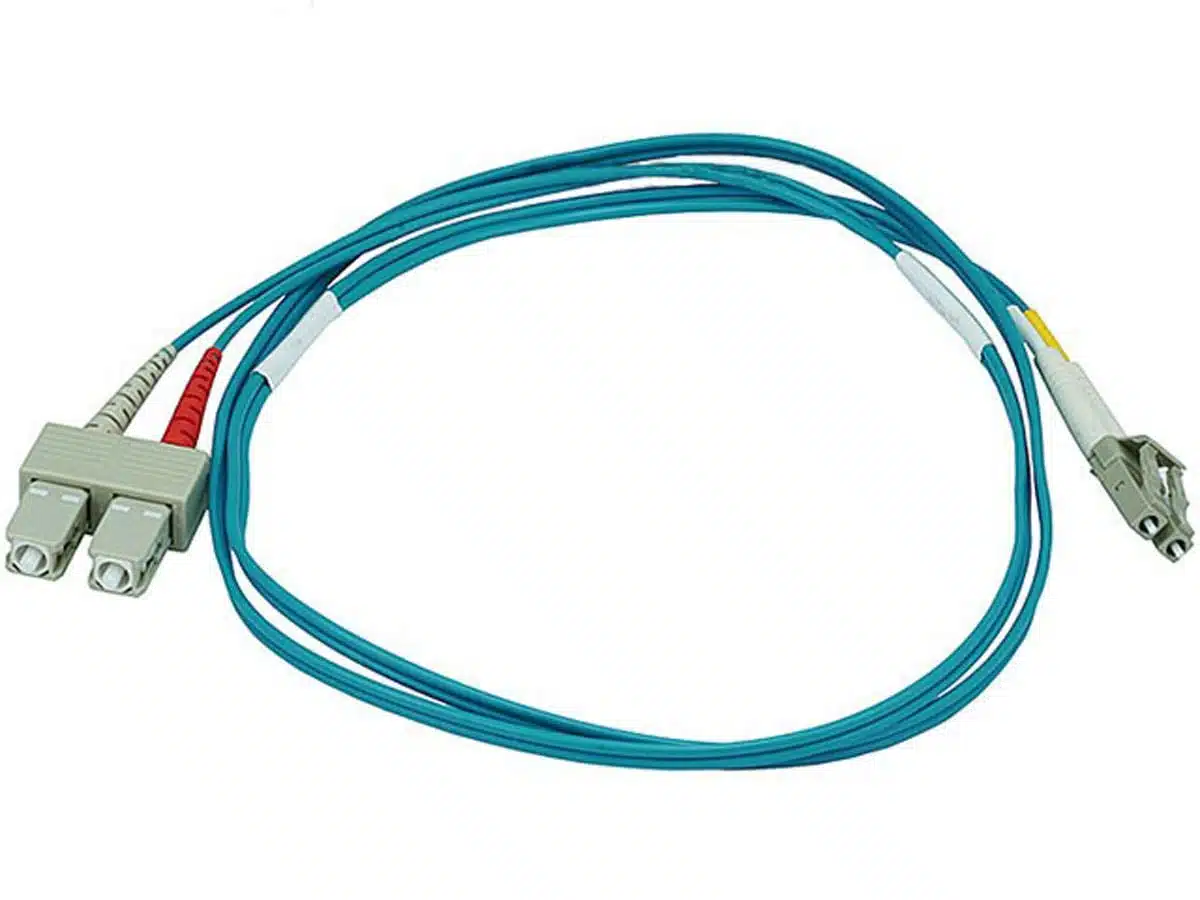

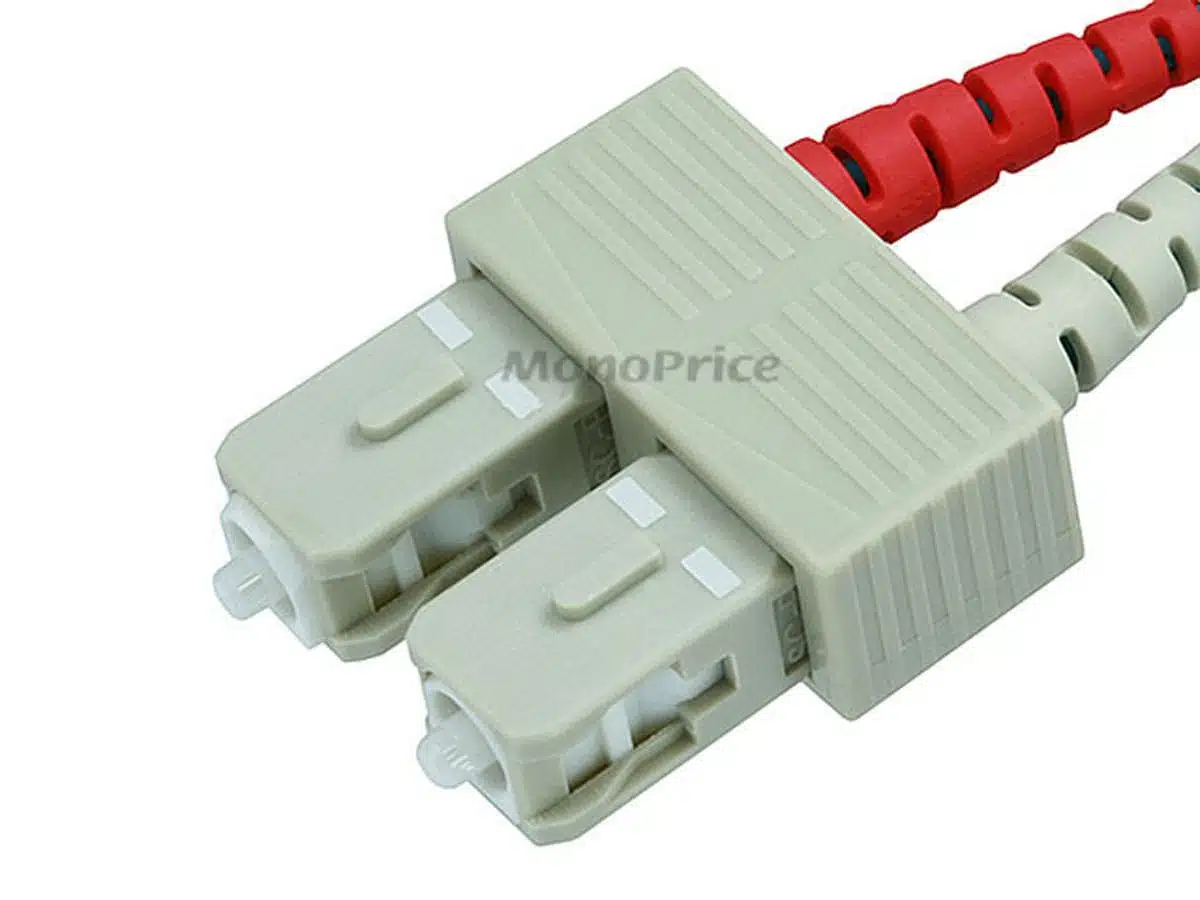

This is an OM3 “Aqua” laser‑optimized, multi‑mode cable with a 50µm core and 125µm cladding diameter. The cable has a color‑coded Dual LC connector on one end and a Dual SC connector on the other end. It is ideal for use in 10 Gigabit Ethernet (GbE) networks.
The cable jacket is OFNR (Optical Fiber, Nonconductive, Riser) rated by UL®, which means that it complies with fire safety and insurance requirements and is safe for use within the walls, and between the floors, of commercial class buildings.
| Fiber Type | Multi‑mode OM3 (50/125µm) |
| Fiber Count | Duplex |
| Fiber Manufacturer | Corning® |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Fire Safety Rating | OFNR |
| Connector Type | LC to SC |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤ 0.30dB |
| Return Loss | ≥ 20dB |
| Repeatability | 1000 times typical change value ≤ 0.20dB |
| Interchangeability | ≤ 0.20dB |
