Description

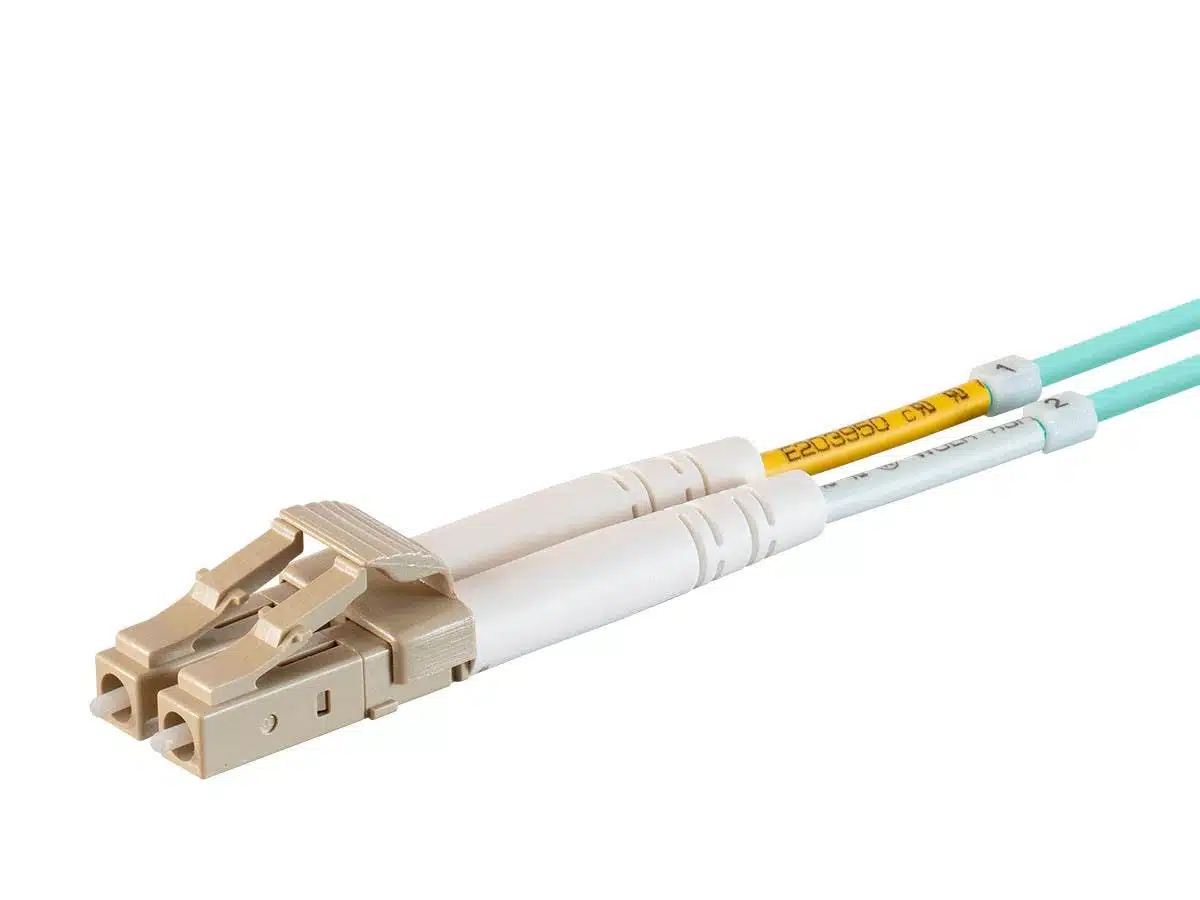

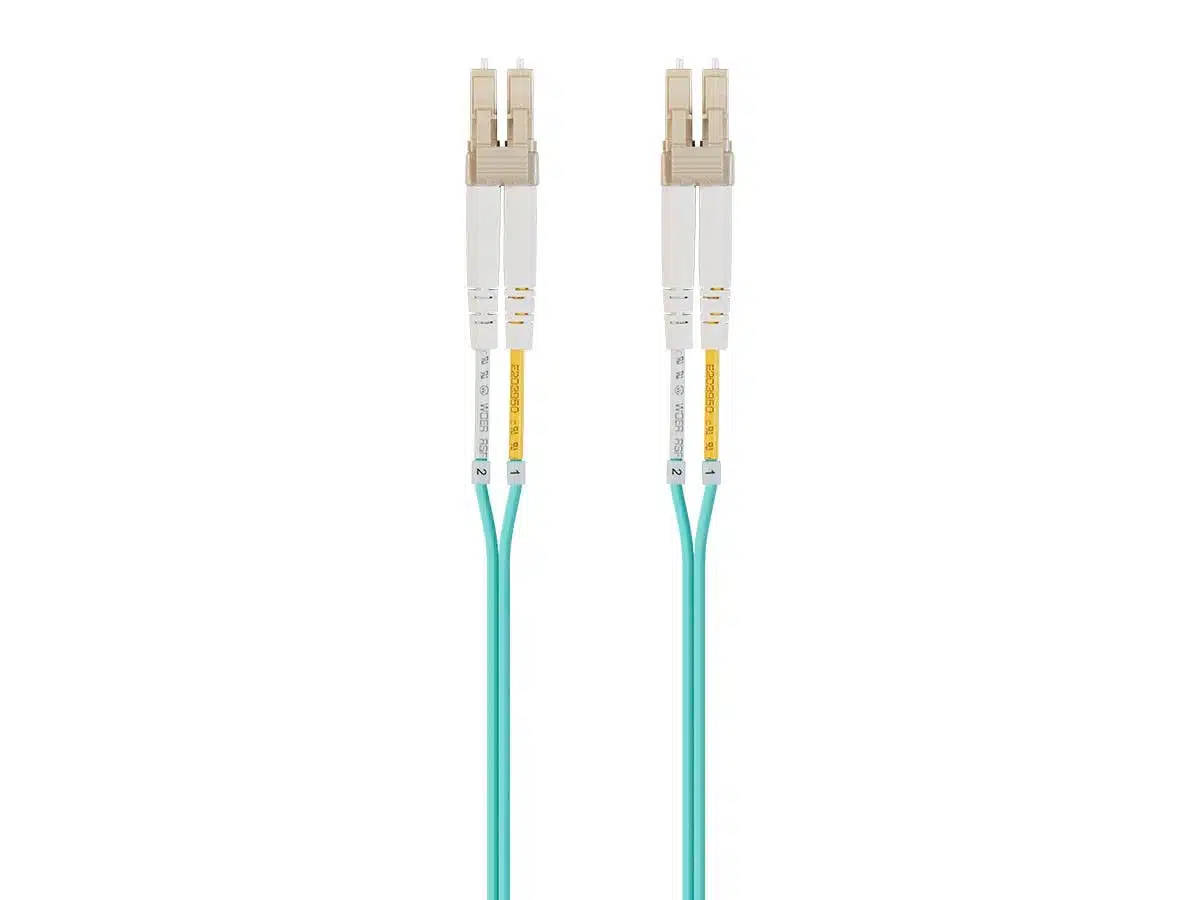

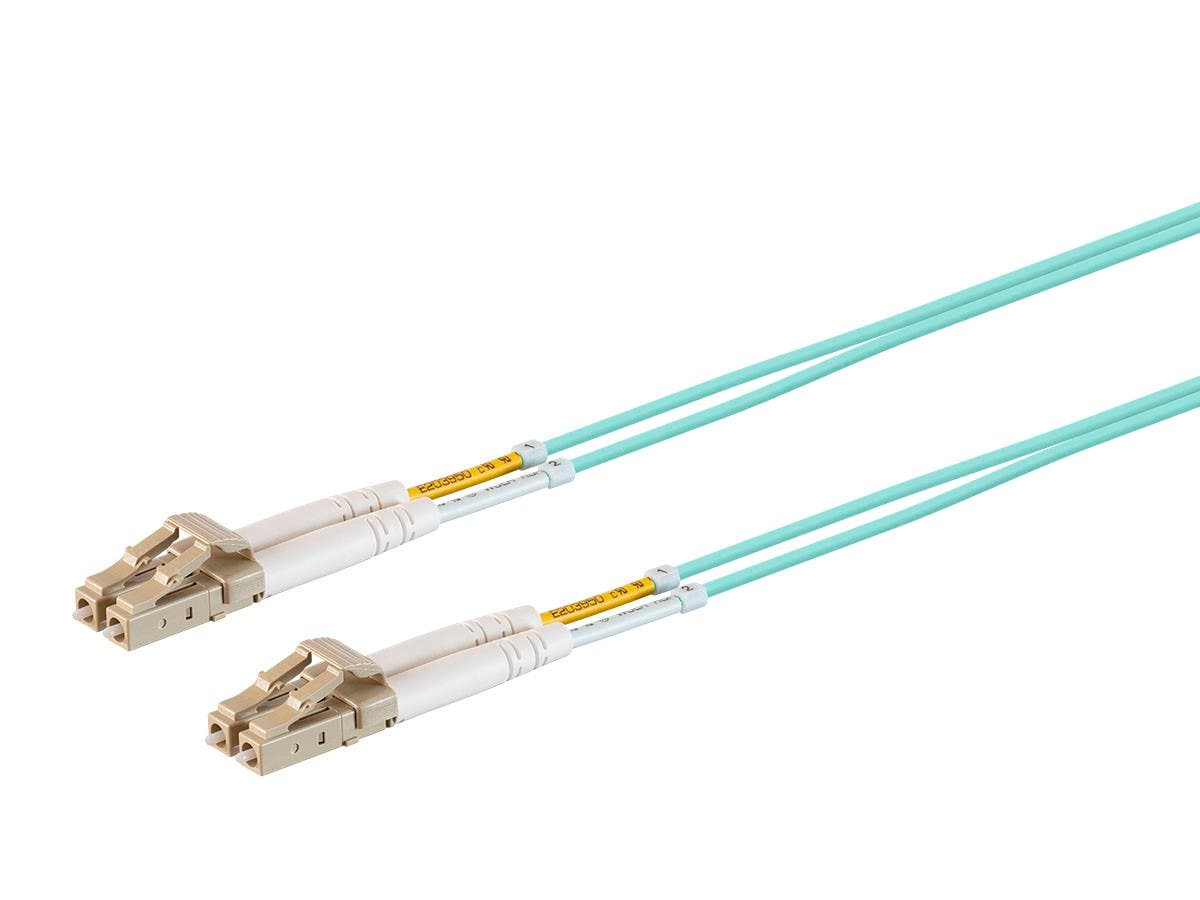

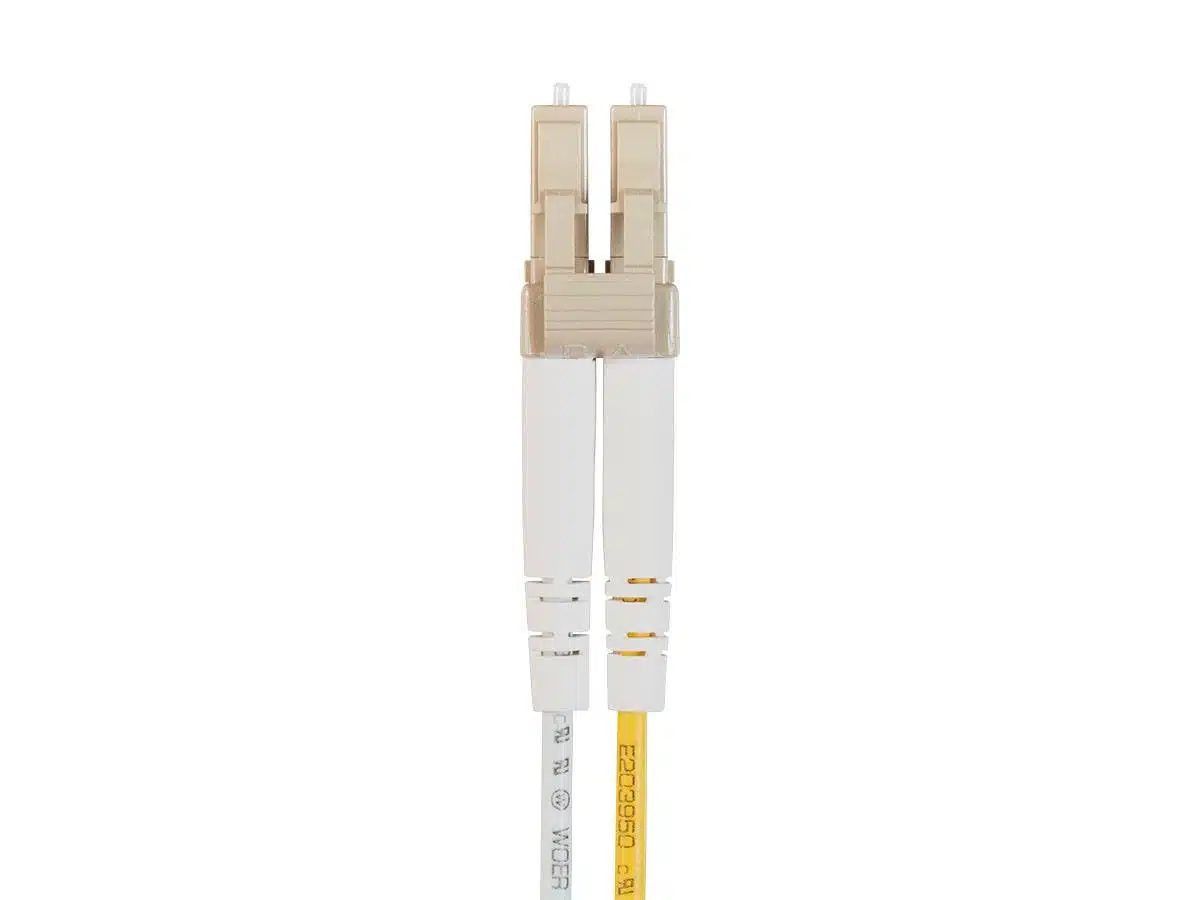

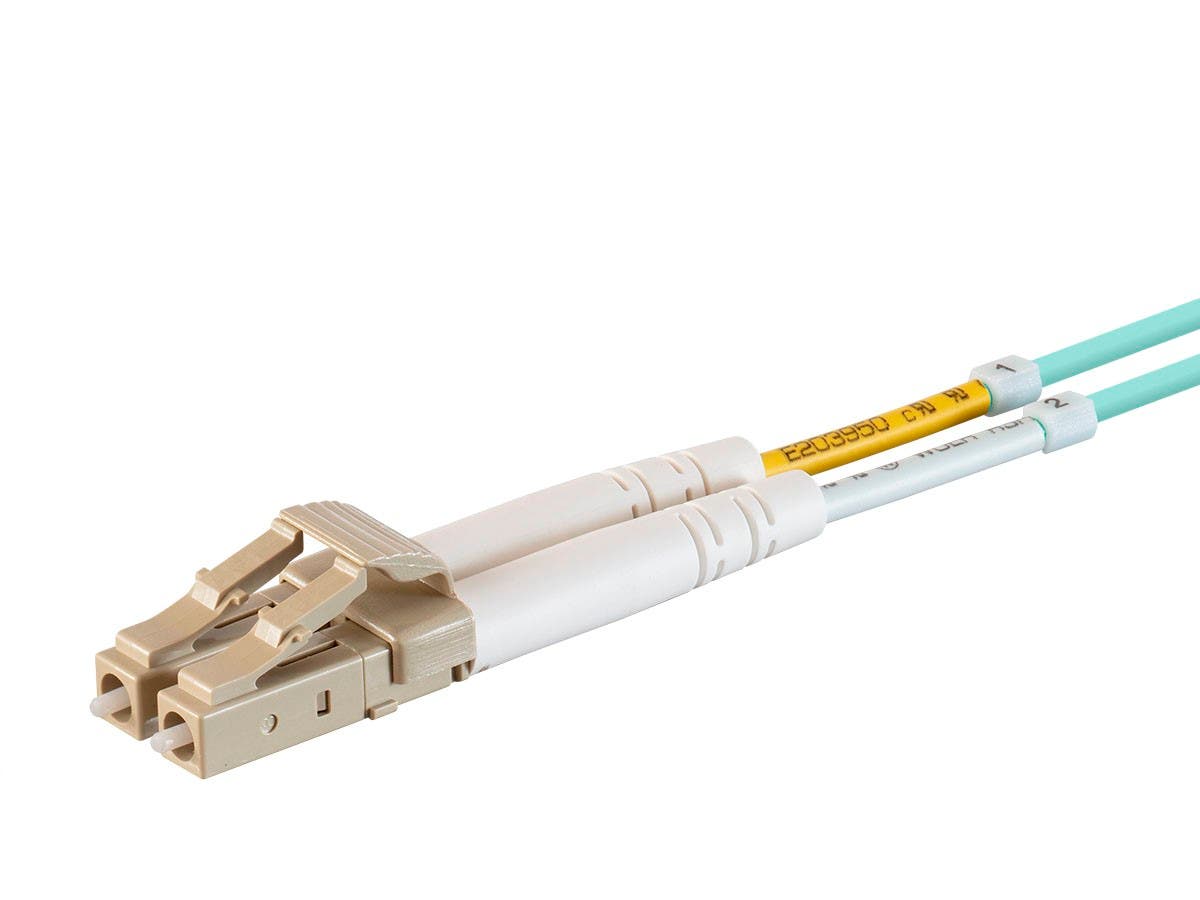

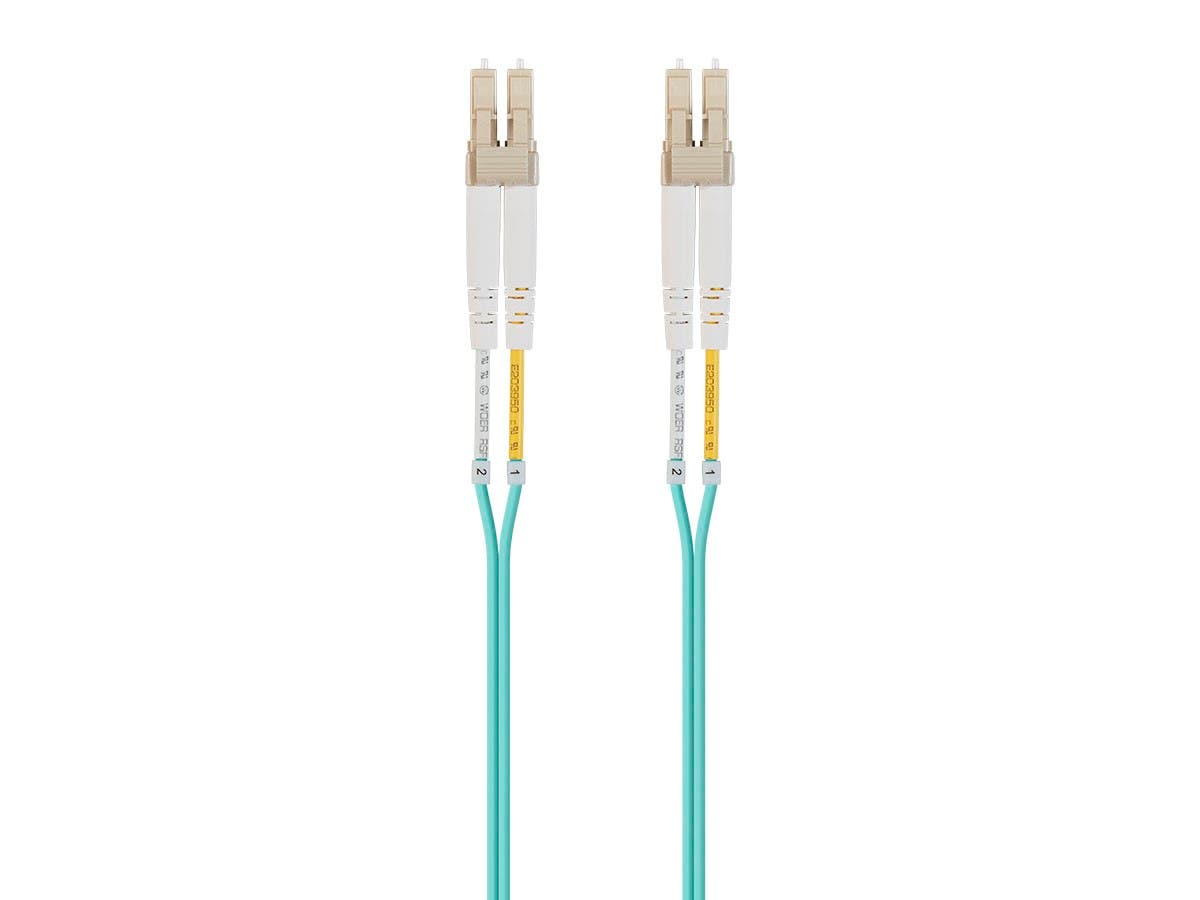

This 50/125µm OM3 fiber optic cable features an extremely high bandwidth, suitable for high-throughput enterprise networks, telecomm rooms, server farms, and cloud storage network applications. It is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers, etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. It is fully backwards compatible with 50/125.
| Type | Core Diameter (µm) | 100BASE‑FX | 1000BASE‑SX | 1000BASE‑LX | 10GBASE | 40GBASE SR | 100GBASE SR |
| OM1 | 62.5/125 | 2000m | 275m | 550m | 33m | Not Supported | Not Supported |
| OM2 | 50/125 | 2000m | 550m | 550m | 82m | Not Supported | Not Supported |
| OM3 | 50/125 | 2000m | 550m | 550m | 300m | 100m | 100m |
| OM4 | 50/125 | 2000m | 550m | 550m | 400m | 100m | 100m |
Applications:
- Data Center
- Enterprise
- Fiber to the X (FTTX)
- Telecommunications Network
- Local Area Network and Wide Area Network (LAN and WAN)
Features:
- Meets EIA/TIA 604‑2 with ceramic ferrule for high speed cabling networks
- High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission
- Small outer diameter, lightweight, flame‑retardant, easy to strip, low attenuation, physically soft
- Cable printing helps clarify and recognize different cables
- Zirconia Ceramic Ferrule Optimum IL and RL
- Bend insensitive fiber cable shows a great performance on resilience
- Factory terminated and tested for insertion loss, return loss and end face
Standards Compliance:
- TIA 604 (FOCIS)
- TIA/EIA 492AAAE
- IEC 61754
- IEC 60793‑2‑10
- IEC 61300‑3‑35
- RoHS
- ISO9001
| Fiber Type | Multi‑mode OM3 (50/125µm) |
| Fiber Count | Duplex |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤ 0.20dB |
| Return Loss | ≥ 35dB |
| Repeatability | 1000 times typical change value ≤ 0.20dB |
| Interchangeability | ≤ 0.20dB |
Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
