Quick Start Guide Description
Easily Adjust for Best Signal Using LED
Use the LED indicator to adjust the UBB position for optimal signal to the other bridge device.

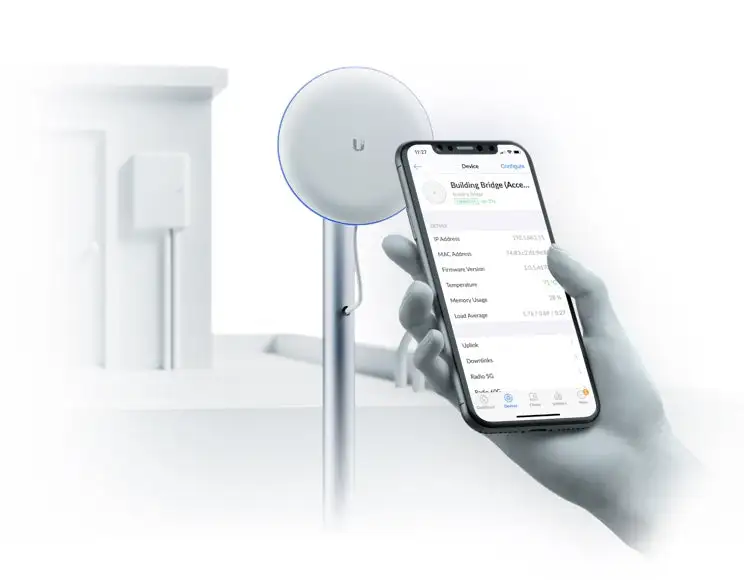

Easy to Set Up
The UniFi Building-to-Building Bridge’s seamless integration with the UniFi Network application makes connecting two networks simple.
Experience the Scalable
UniFi Network Application
UniFi Network Application
The UniFi® Network Application is an end-to-end system of network devices across different locations — all controlled from a single interface.
Download Mobile App
Product Summary
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 90 mm (5.51 x 5.51 x 3.54″) |
| Weight | 376 g (13.3 oz) |
| Enclosure | UV-Resistant Polycarbonate |
| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interfaces | (1) 10/100/1000 Ethernet Port |
| Management Interfaces | Bluetooth |
| Antenna Gain 2.4 GHz (BLE) 5 GHz 60 GHz |
2 dBi 10 dBi 17.2 dBi |
| GPS | Yes |
| Max. TX Power 5GHz 60GHz |
25 dBm 32 – 36.5dBm |
| 60 GHz Elevation Beamwidth | 30° |
| 60 GHz Azimuthal Coverage | ±60° |
| Power Method | PoE Supported Passive PoE (48V) |
| Power Supply | UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) |
| Max Power Consumption | 11W |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 – 5875 57,000 – 66,000 |
| US/CA | U-NII-1: 5150 – 5250 U-NII-3: 5725 – 5850 57,000 – 66,000 |
| Bluetooth (MHz) | |
| Worldwide | 2400 – 2483.5 |
